Revolutionizing Sample Preparation in Modern Laboratories
In the evolving landscape of material science and research, the small planetary ball mill has emerged as an indispensable tool for laboratories worldwide. This sophisticated equipment combines precision engineering with advanced grinding technology to deliver unparalleled performance in sample preparation and nanomaterial processing. With capabilities reaching down to nanoscale particle sizes and versatile application across numerous industries, these compact systems are transforming how researchers approach material synthesis and analysis.

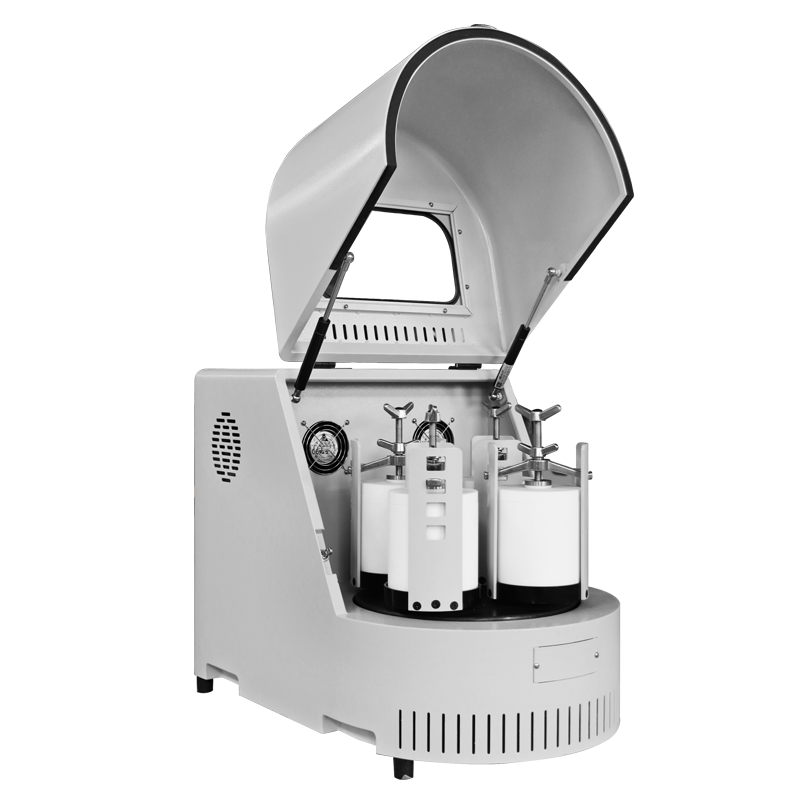

Small planetary ball mills operate on a unique principle where grinding jars rotate around a central axis while simultaneously performing a planetary movement around their own axes. This complex motion generates significant centrifugal forces that result in high-energy impacts between grinding balls and sample materials, enabling rapid size reduction to as small as 0.1 micrometers or even less. The machines typically feature four grinding jars that can process multiple samples simultaneously, significantly enhancing laboratory efficiency and ensuring consistent results across parallel experiments.
Technical Specifications and Performance Capabilities
Modern small planetary ball mills boast impressive technical specifications that make them ideal for research and development applications. These systems typically offer variable speed control ranging from 100 to 1,100 rpm, creating centrifugal accelerations up to 95 times gravitational force. This high-energy environment enables rapid processing of even the most challenging materials, with many models achieving nanoscale particles within 5-10 minutes of grinding time.
The equipment supports various grinding methodologies, including dry grinding, wet grinding, and specialized approaches like vacuum grinding and temperature-controlled grinding. This flexibility allows researchers to maintain specific atmospheric conditions throughout the process, preventing oxidation or thermal degradation of sensitive materials. The grinding jars come in multiple materials—including stainless steel, oxidation-resistant zirconia, contamination-free agate, and wear-resistant tungsten carbide—ensuring compatibility with diverse sample types and research requirements.
Table 1: Key Technical Specifications of Small Planetary Ball Mills
| Parameter | Typical Range | Significance |
|---|---|---|
| Final Fineness | 0.1μm (100nm) to <1μm | Enables nanoscale material research |
| Grinding Jar Volume | 50ml to 3L | Accommodates various sample quantities |
| Speed Control | 100-1,100 rpm | Precise optimization for different materials |
| Simultaneous Samples | 2 or 4 jars | Increases throughput and ensures consistency |
| Noise Level | 50-65 dB | Creates comfortable laboratory environment |
Application Range and Material Compatibility
The versatility of small planetary ball mills extends across an impressive spectrum of materials and industries. These systems effectively process inorganic compounds, organic materials, brittle substances, fibrous samples, and even tough alloys with equal proficiency. This wide compatibility has led to their adoption in diverse sectors including geological research, metallurgical analysis, electronic material development, ceramic engineering, pharmaceutical research, and environmental science.
One of the standout features of these systems is their ability to handle both dry grinding and wet grinding processes with equal effectiveness. The wet grinding capability is particularly valuable for preparing stable suspensions or preventing temperature-sensitive materials from overheating during processing. Furthermore, specialized models can operate under vacuum conditions or with protective gas atmospheres, expanding their utility to air-sensitive materials that would degrade in normal atmospheric conditions.
Industry-Specific Applications Revolutionized by Planetary Ball Milling Technology
1. Lithium-Ion Battery Development
In the rapidly advancing battery technology sector, small planetary ball mills have become crucial for developing next-generation energy storage materials. These systems enable researchers to achieve the homogeneous mixing and precise particle size reduction required for high-performance electrode materials. The capacity to produce electrode powders with controlled nanometer-scale features directly impacts critical battery parameters including energy density, charge-discharge rates, and overall cycle life.
The planetary ball milling process facilitates mechanical alloying and nanocomposite formation essential for creating advanced anode and cathode materials. For silicon-based anodes—which offer significantly higher theoretical capacity than traditional graphite—planetary ball milling helps address the substantial volume expansion issue during lithiation by creating optimized composite structures. Similarly, for solid-state batteries, the technology enables thorough mixing of ceramic electrolyte materials with controlled particle sizes, enhancing ionic conductivity and interface compatibility.
2. Pharmaceutical and Biotechnology Applications
The pharmaceutical industry relies on small planetary ball mills for drug formulation development and active pharmaceutical ingredient
processing. Particle size reduction through planetary ball milling significantly enhances the bioavailability of poorly soluble drugs by increasing their surface area, leading to improved dissolution rates and therapeutic efficacy. This capability is particularly valuable for BCS Class II and IV drugs where solubility limitations restrict clinical performance.
Beyond conventional size reduction, planetary ball mills facilitate mechanochemical synthesis of pharmaceutical cocrystals—materials with enhanced physicochemical properties compared to their individual components. These mills also contribute to novel drug delivery system development by creating nanocarriers for targeted therapy and controlled release applications. In biotech applications, the equipment is used for cell disruption and DNA/RNA extraction processes where mechanical forces break down cellular structures without damaging the molecules of interest.
Table 2: Small Planetary Ball Mill Applications Across Industries
| Industry Sector | Primary Applications | Key Benefits |
|---|---|---|
| Battery Materials | Electrode powder preparation, solid electrolyte processing | Enhanced energy density, improved cycle life |
| Pharmaceuticals | Drug particle reduction, cocrystal formation | Increased bioavailability, modified release profiles |
| Materials Science | Nanomaterial synthesis, mechanical alloying | Precise control over material properties |
| Geology/Mining | Sample preparation for analysis | Consistent results, minimal contamination |
3. Advanced Materials Synthesis
In the materials science domain, small planetary ball mills enable nanoparticle synthesis, mechanical alloying, and composite material development with precision unmatched by conventional grinding equipment. Researchers utilize these systems to create everything from advanced ceramics with enhanced mechanical properties to metal-organic frameworks
with tailored porosity for specific applications.
The high-energy ball milling process facilitates solid-state reactions at lower temperatures than traditional methods, offering energy-efficient pathways to novel materials. This capability is particularly valuable for creating materials systems that are difficult or impossible to produce through conventional melting or chemical routes. The equipment's ability to operate under controlled atmospheres further expands its utility for processing oxygen-sensitive or moisture-reactive materials that would decompose under normal conditions.
Distinctive Advantages Over Traditional Grinding Equipment
Enhanced Efficiency and Precision Control
Small planetary ball mills outperform conventional grinding equipment through their unique planetary motion that generates significantly higher impact energies. This mechanical advantage translates to shorter processing times and finer final particle sizes compared to traditional ball mills or mortar-and-pestle approaches. The systems offer precise digital control over critical parameters including rotation speed, grinding duration, and operational sequence, enabling reproducible results that are essential for scientific research and quality control applications.
Modern models incorporate programmable logic controllers
with touchscreen interfaces that allow operators to store numerous grinding protocols for different materials. Advanced features like automatic reversal functions prevent overheating and ensure more uniform grinding by periodically changing the rotation direction. This level of automation reduces operator intervention while improving result consistency—particularly valuable when comparing samples processed at different times or by different technicians.
Innovative Design Features and Enhanced Safety
Leading manufacturers have incorporated patented technologies that address common limitations of earlier grinding equipment. The motor direct-drive systems found in advanced models eliminate the belt drives used in traditional designs, preventing speed degradation due to belt wear and ensuring consistent performance throughout the equipment's lifespan. Similarly, specialized oil-sealing technology reduces operational noise by up to 50% compared to conventional gear transmission systems while simultaneously extending mechanical component life.
Safety enhancements include integrated safety locks that prevent opening during operation, overload protection that automatically shuts down the system in case of mechanical obstruction, and emergency stop buttons for immediate power cutoff. These features protect both operators and equipment while ensuring uninterrupted laboratory workflows. The compact footprint of small planetary ball mills makes them ideal for space-constrained laboratory environments, with many models designed for benchtop operation without requiring special installation considerations.
Operational Economy and Low Maintenance Requirements
Despite their advanced capabilities, small planetary ball mills offer favorable operational economics with minimal maintenance requirements. The durable construction of quality units ensures years of reliable service with only basic care such as periodic lubrication and routine inspection of wear components. The availability of multiple grinding jar materials at various price points allows laboratories to select options that balance performance requirements with budget constraints.
The energy-efficient designs of modern planetary ball mills consume less power than traditional grinding equipment while delivering superior results. This combination of performance and efficiency makes them increasingly popular in both academic and industrial settings where throughput and operating costs significantly impact research and development budgets. The ability to process multiple samples simultaneously further enhances their economic advantage by increasing laboratory productivity without corresponding increases in equipment footprint or operator time.
Future Outlook and Technological Evolution
As material research continues to advance toward nanoscale engineering, small planetary ball mills are evolving to meet increasingly demanding requirements. We observe integration of advanced monitoring systems that track temperature and pressure within grinding jars in real-time, providing valuable data for process optimization. The emergence of cryogenic grinding capabilities enables processing of temperature-sensitive materials that would degrade under conventional milling conditions.
The growing emphasis on data integrity and process validation in regulated industries is driving incorporation of network connectivity and data logging features that support quality-by-design initiatives. These advancements position small planetary ball mills as not merely grinding tools but as comprehensive material processing platforms that will continue to enable scientific discovery and technological innovation across numerous fields.
In conclusion, the small planetary ball mill represents a convergence of mechanical innovation, process control, and application versatility that makes it an essential investment for modern laboratories. Its ability to deliver reproducible, nanoscale results across diverse materials ensures it will remain at the forefront of research and development infrastructure for the foreseeable future.
